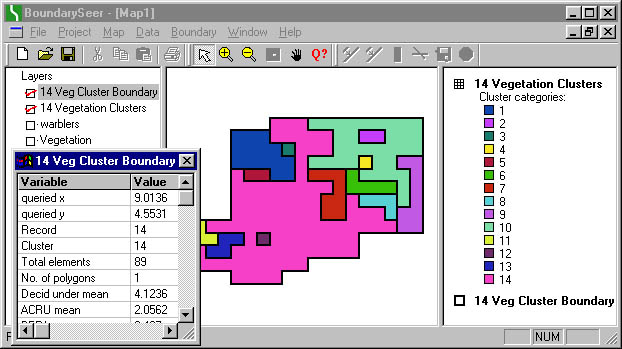

A map is created automatically after clustering. If you chose not to view the map at that time, you can see it by right clicking on the "14 Veg Cluster Boundary" object in the Boundaries tab of the Project Window and selecting "Add to map" from the menu.
The map shows the 14 clusters in vegetation data set. The original raster is completely obscured by the two new objects. This is because a new dataset (14 Veg Clusters) has been created using the same spatial framework. If you wish to view the original dataset, clear the 14 Veg Clusters box in the layers pane of the map window (on the left).
You can query clusters if you have the 14 Veg Cluster Boundary layer selected (highlighted, you can select it by clicking on it with the pointer). Once you have selected that layer, choose the query tool from the map toolbar. Click on clusters to see information about each. You can also view this information in a table.
